Emergency Push buttons

funghiAll the emergency operators are realized in compliance with European standards:

• EN ISO 13850 Machine safety. Emergency stopping devices, functional aspects – Project principles
• IEC/EN60947-5-1
• They comply to the requirements of the norm IEC/EN60204-1: Machine safety – Machine electric equipment – General rules
The operators are manufactured with a mechanical system of “charge stock” which guarantees activation and coupling certainty, or stopping, in “active” position.
The combination with NC contact with positive opening and the presence of visual systems on “state” of the actuator on some models guarantee the highest reliability of this kind of operators.

Models availability: Push-pull, rotation, momentary, with key.
With and without visual signal;
Diameter 30, 40, 60, 90
Protection IP69K


EMERGENCY KEYS ø 22 EN ISO 13850

PPFN1R3N

Mushroom-shaped keys ø 30 rotation release

PPFN1R3S

Mushroom-shaped keys ø 30 rotation release with vision

PPFN1R4N

Mushroom-shaped keys ø 40 rotation release

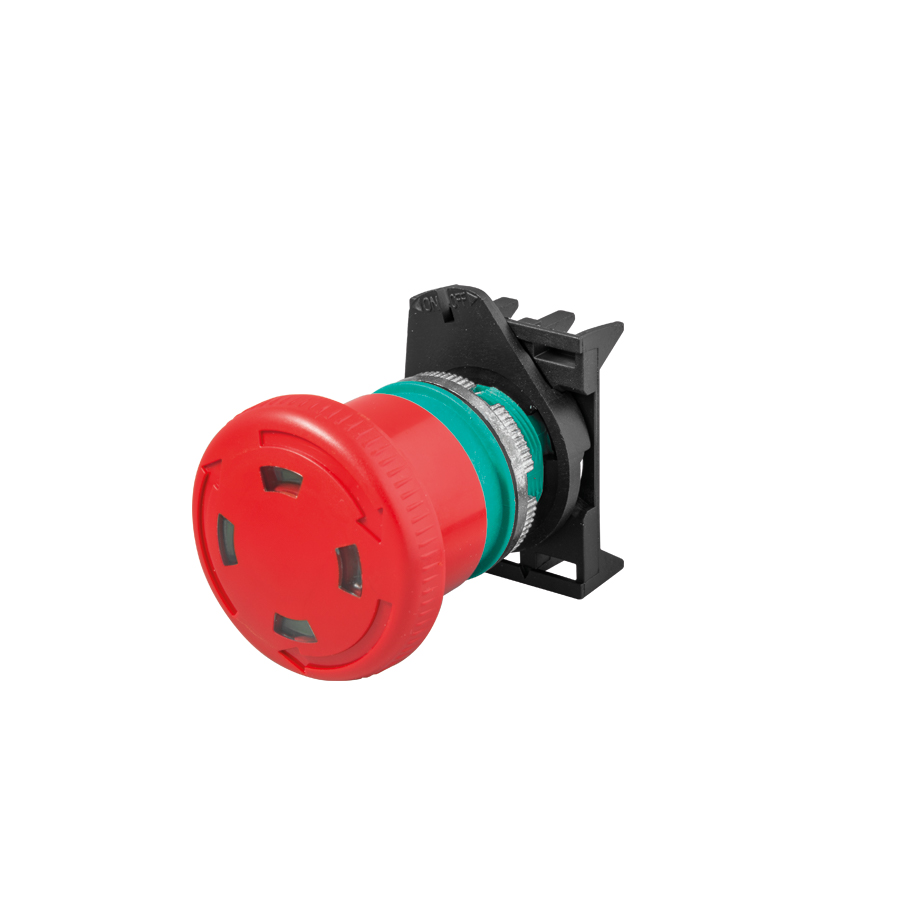

PPFN1R4S

Mushroom-shaped keys ø 40 rotation release with vision

PPFN1R6N

Mushroom-shaped keys ø 60 rotation release

PPFN1R6S

Mushroom-shaped keys ø 60 rotation release with vision

PPFN1C4N

Mushroom-shaped keys ø 40 with key release

PPFN1R4N

Mushroom-shaped keys ø 40 push-pull

PPFN1C4N

Mushroom-shaped keys ø 40 push-pull with vision

PPFL1P4N

Mushroom-shaped key ø 40 push-pull not luminous

PPFL1P4N

Mushroom-shaped key ø 40 push-pull luminous


KEYBOARDS mushroom-shaped ø90 – IP66 EN ISO 13850

Protection grade IP66
Double isolation
Until 3 inner contacts
N°3 breakable holes Pg 13,5/M20 for cable pressure
Room temperature: when employed -25 +70°C
Stock temperature -30 +70°C
Climate endurance: IEC 68 2-3, 2-30
Clips identification: EN 50013



Momentary axial mushroom-shaped keyboard IP66
Colors: Red mushroom-shaped key RAL 3000, Giovenzana yellow cover, black case RAL 9005

Momentary axial mushroom-shaped keyboard IP66
Black mushroom-shaped key RAL 9005, grey cover RAL 7035, black box RAL 9005

Momentary axial mushroom-shaped keyboard
For recess
Colors: Red mushroom-shaped key RAL3000, Giovenzana yellow cover
