TR85H7P007W
Busbar System – TR85H7P – Pre-Mounted conductor Joint Box Pre-Mounted – Material: Nylon – Weight: 357 g – Characteristics: It’s used to join two bars and protect bolted junctions, two screws guarantee the closure of connection.
TR85H7P..
Busbar System – TR85H7P – Pre-Mounted conductor Busbar – Material: PVC and copper – Characteristics: TR85H7P507CW – 50A, 7 contact shoes, 1.7 kg/m TR85H7P1007CW – 100A, 7 contact shoes, 2.375 kg/m. It’s possible to obtain 200A, by connecting in parallel the phases. TR85H7P1607CW – 160A, 7 contact shoes, 3.125 kg/m. It’s possible to obtain 320A,…
TR85H7P14
Busbar System – TR85H7P – Continuous conductor Conductor insertion trolley – Material: Nylon – Weight: 400 g – Characteristics: This trolley, connected to a tension wire, is used to insert conductors one by one in the relevant seat of the busbar.
TR85H7P34
Busbar System – TR85H7P – Continuous conductor Transfer guide – Material: ABS – Weight: 240 g – Characteristics: Used to create a transition from one track to another when the line is interrupted.
TR85H7P45W
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Section Joint – Material: Nylon – Weight: 1,3 kg – Characteristics: Used to separate electrically the conductor to create maintenance areas (to double up the number of collectors).
TR85H7P28W
Busbar System – TR85H7P – Continuous conductor Inspection Joint – Material: Nylon, PVC – Weight: 1170 g – Characteristics: Composed by a removable part of housing, it used to inspect or remove the current collector.
TR85H7P07W
Busbar System – TR85H7P – Continuous conductor Expansion Joint – Material: Nylon, PVC – Weight: 1,2 kg – Characteristics: Used to compensate the temperature fluctuation, to be installed between two fixed point. It necessary to add a support bracket for this item.
TR8562
Busbar System – TR85H7P – Continuous & Pre-mounted conductor 4 poles trolley connection clamp – Weight: 149 g – Characteristics: Connectors for cable ( max section 16 mm2) for parallel use of double trolley configuration with 4 poles (3ph 140 A – PE 70 A) or triple configuration (3ph 210 A – PE 105 A).
TR8561
Busbar System – TR85H7P – Continuous & Pre-mounted conductor 4 poles trolley connection clamp – Weight: 77 g – Characteristics: Connectors for cable (max section 25 mm2) for parallel use of trolley with 4 poles (3ph 70 A – PE 35 A).
TR8559
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Towing Arm – Material: Galvanized steel – Weight: 2,70 kg – Characteristics: It’s designed to connect, by chains, the moving device to the collector for triple trolley current collector.
TR8558
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Towing arm – Material: Galvanized steel – Weight: 2,40 kg – Characteristics: It’s designed to connect, by chains, the moving device to the collector for double trolley current collector.
TR85H7P010
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Trolley current collector – For straight and curved lines – Material: Nylon for body, metal carbon for brush – Characteristics: Amperage 105A – Triple, 7 contact shoes, 4000 g It’s designed to bring power from the conductor line to the crane by means spring loaded metal…
TR85H7P002
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Trolley current collector – For straight and curved lines – Material: Nylon for body, metal carbon for brush – Characteristics: Amperage 70A – Double, 7 contact shoes, 2700 g It’s designed to bring power from the conductor line to the crane by means spring loaded metal carbon…
TR85H7P001
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Trolley current collector – For straight and curved lines – Material: Nylon for body, metal carbon for brush – Characteristics: Amperage 35A, 7 contact shoes, 1370 g It’s designed to bring power from the conductor line to the crane by means spring loaded metal carbon brushes.…
TR8564
Busbar System – TR85H7P – Continuous & Pre-mounted conductor Transition box – Weight: 3.2 kg – Characteristics: Box for parallel connections 200A or 320A. Composed by cable glands and connection clamp.
TR85H7P03W
Busbar System – TR85H7P – Continuous conductor In-line feed box – Material: Nylon, PVC – Weight: 1560 g – Characteristics: Mounted along the line, it provides intermediate feeding points to reduce voltage drop. It’s provided with 2 cable glands PG29. The connection is made with relevant screws, not included.
TR85H7P005W
Busbar System – TR85H7P – Continuous conductor End feeder box – Material: Nylon – Weight: 490 g – Characteristics: Mounted at the extremity of the line, it provides an easy electrical connection for the line. It’s supplied with a M40 cable gland; for copper type up to CSH7100.
CSH…

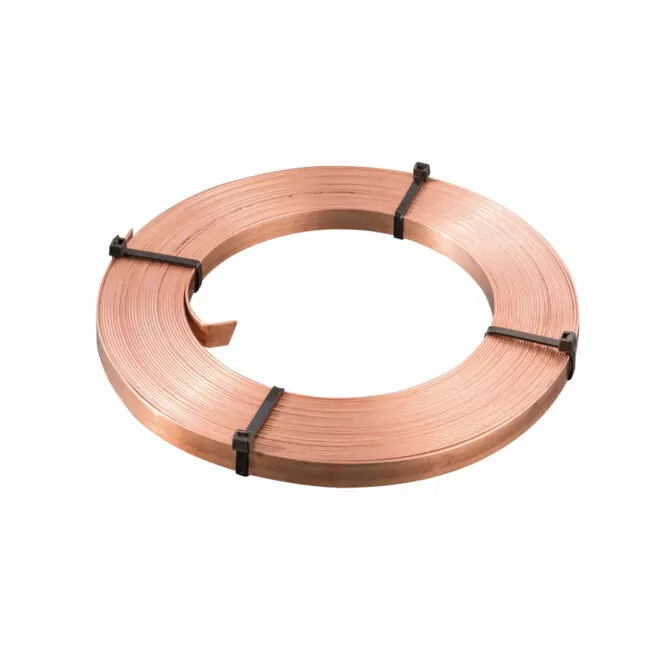

Busbar System – TR85H7P – Continuous conductor Copper conductor – Material: ETP copper – Characteristics: CSH750 – 50 A, 12.5×0.8 mm copper strip, 90g/m CSH7100 – 100 A, 12.5×1.8mm copper strip, 190g/m CSH7160 – 160 A, 12,5×2,5mm copper strip, 280 g/m It’s possible to connect in parallel two strips to reach 200A (2×100) and 320A…
TR85H7PW
Busbar System – TR85H7P – Continuous conductor Insulating housing – Material: PVC – Weight: 1025 g/m – Characteristics: The insulating profiles are 4m long, can be joined each other easily and can accommodate up to 7 copper strips with different sections, inserted continuously along the entire length of the line. Curved insulating housings are available…
TR85H5P35A..
Busbar System – TR85H5P – Pre-Mounted conductor Transfer guide Pre-Mounted – Material: ABS, PVC, nylon , copper – Characteristics: TR85H5P35A4W – Right, 4 conductors, 2.36 kg/m TR85H5P35A5W – Right, 5 conductors, 2.64 kg/m Used to create a transition from one track to another when the line is interrupted; this assembly has the copper already inserted.
