ATEX – IECEx – EAC Ex AND UL HAZLOC CERTIFIED COMPONENTS

Giovenzana International B.V. develops, implements projects and builds safety systems and solutions, equipment and components. The aim is to protect people and the environment through safe and certified solutions.

Also for Hazardous Locations, Giovenzana offers a continuously evolving range of products suitable for use in potentially explosive atmospheres: zones 1-2 (Gases) and zones 21, 22 (Dusts).

Giovenzana has obtained all ATEX and IECEx company system certifications for potentially explosive atmospheres:
the “Quality Assurance Notification” (QAN) is required for ATEX
the “Quality Assessment Report” (QAR) is required for IECEx.

All our products are designed to be compliant with ATEX 2014/34/EU, the mandatory European directive according to the international standard EN 60079 – IEC 60079.

The ATEX and IECEx product range is constantly being expanded and evolved thanks to daily Research & Development and fed by customer requests to the Global Sales Network.

PRODUCT INDEX:

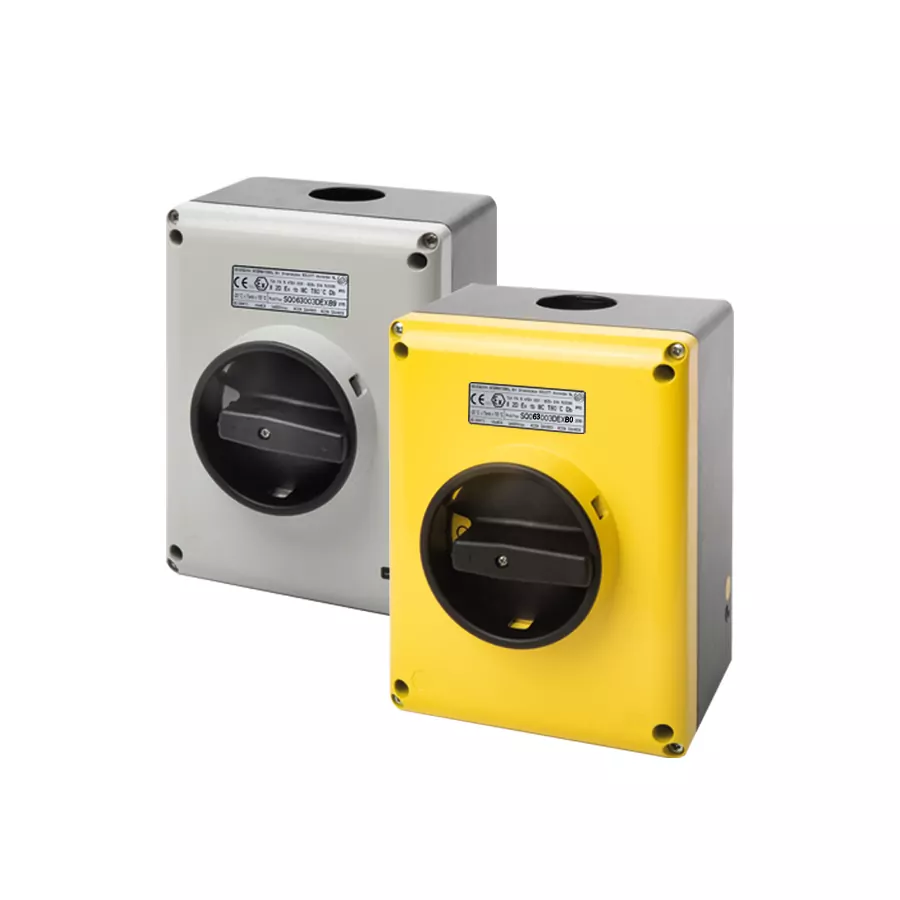

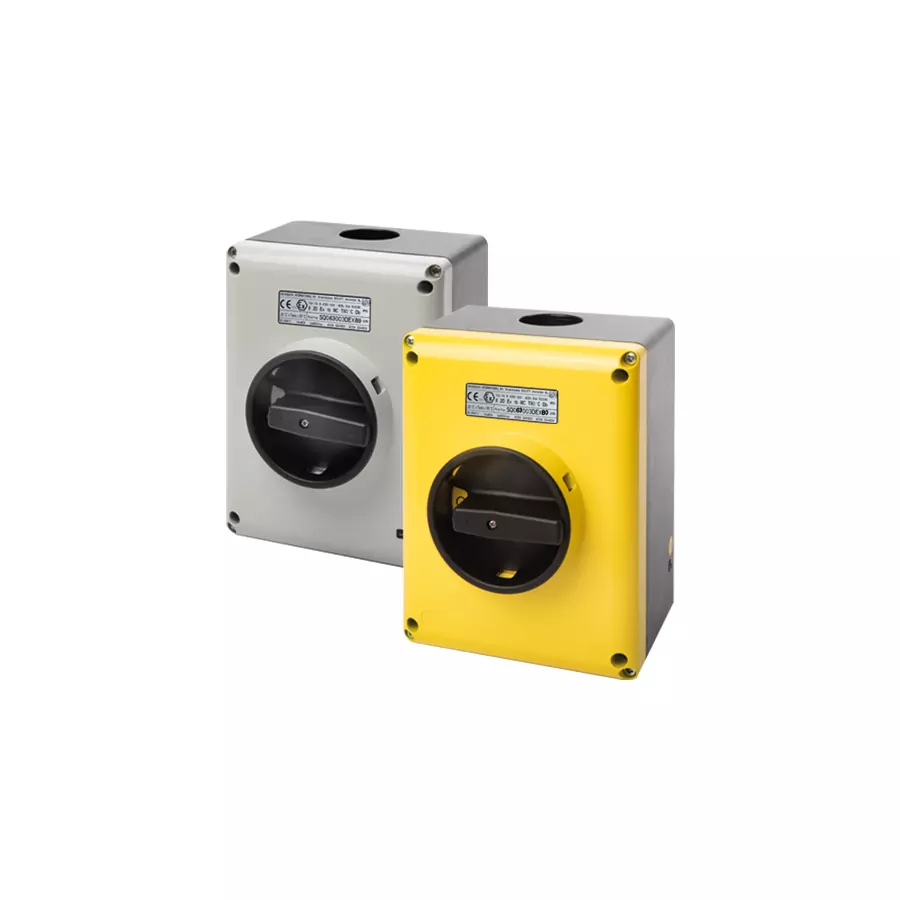

Switch Disconnectors – SE / SQ Series
II 2D Ex tb IIIC T85°C Db / Zone 21-22 (Dust) / Tamb = -20°C .. +55°C / IP65

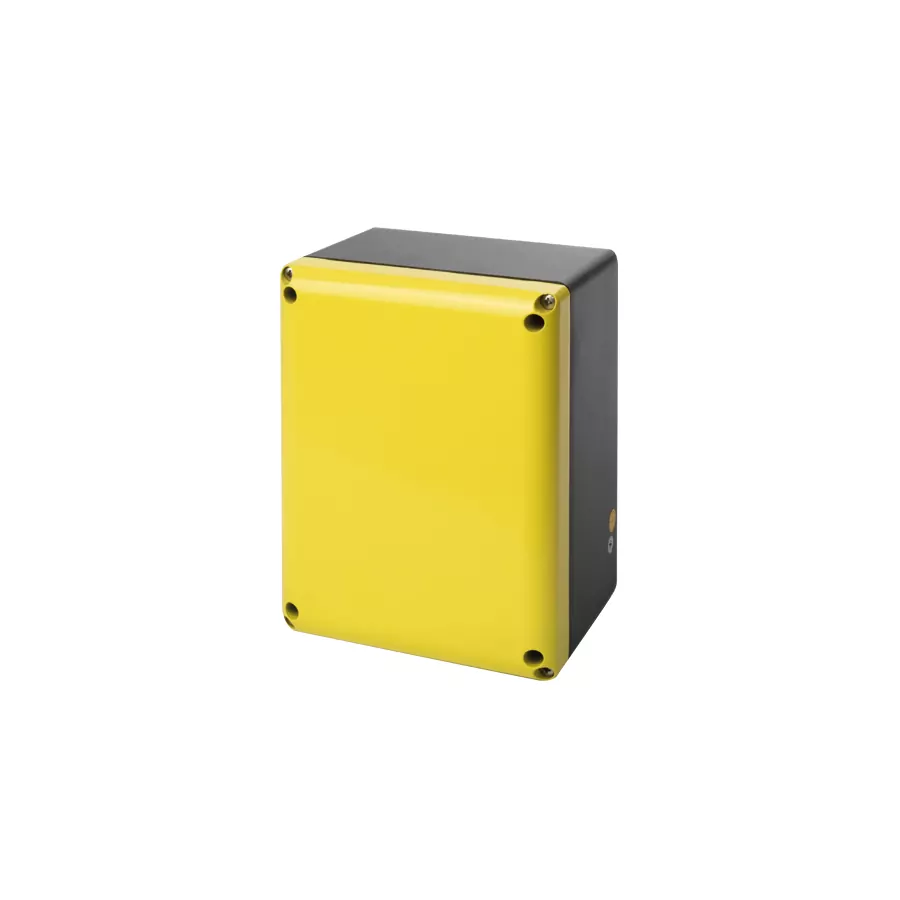

Enclosures – BNA / BNB Series
II 2G Ex eb IIC Gb – II 2D Ex tb IIIC Db / Zone 1-2 (Gas) – Zone 21-22 (Dust) / Tamb = -60°C .. +150°C / IP65

Cam Switches – P0 / PX / C0 / CX Series
II 2D Ex tb IIIC T85°C Db / Zone 21-22 (Dust) / Tamb = -20°C .. +55°C / IP65

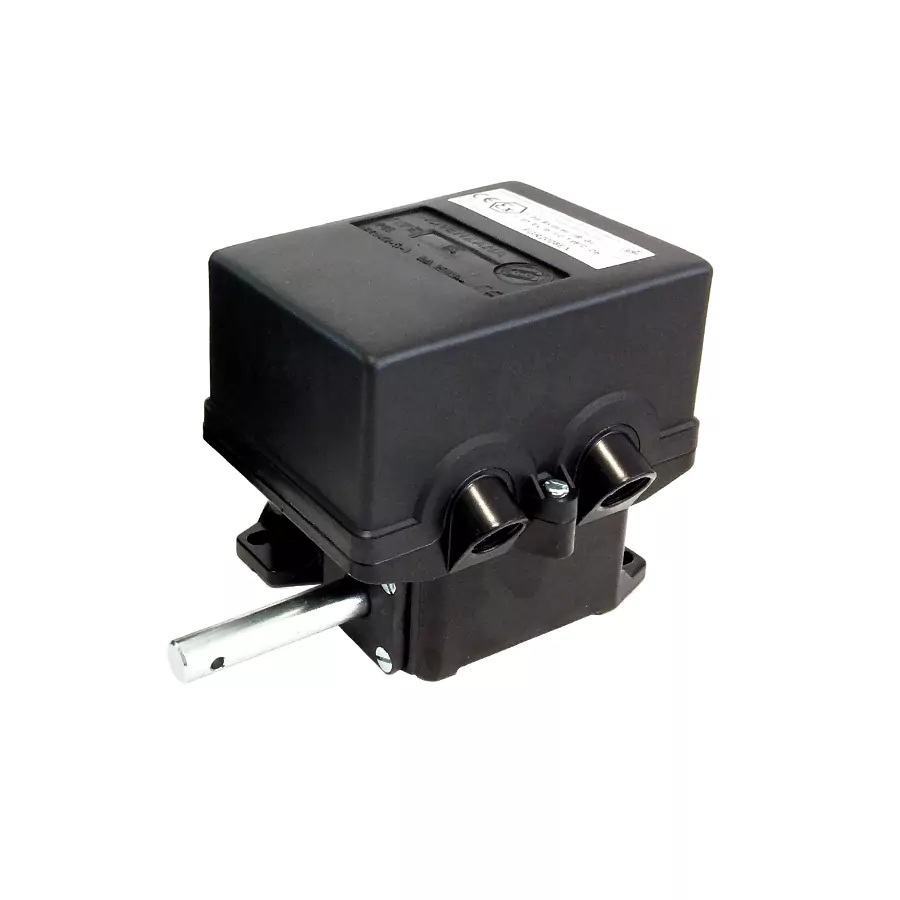

Rotary Gear Limit Switches – FGR2 Ex Series
II 3G Ex dc ec IIB T5 Gc – II 2D Ex tb IIIC T85°C Db / Zone 2 (Gas) – Zone 21 (Dust) / Tamb = -20°C .. +70°C / IP65

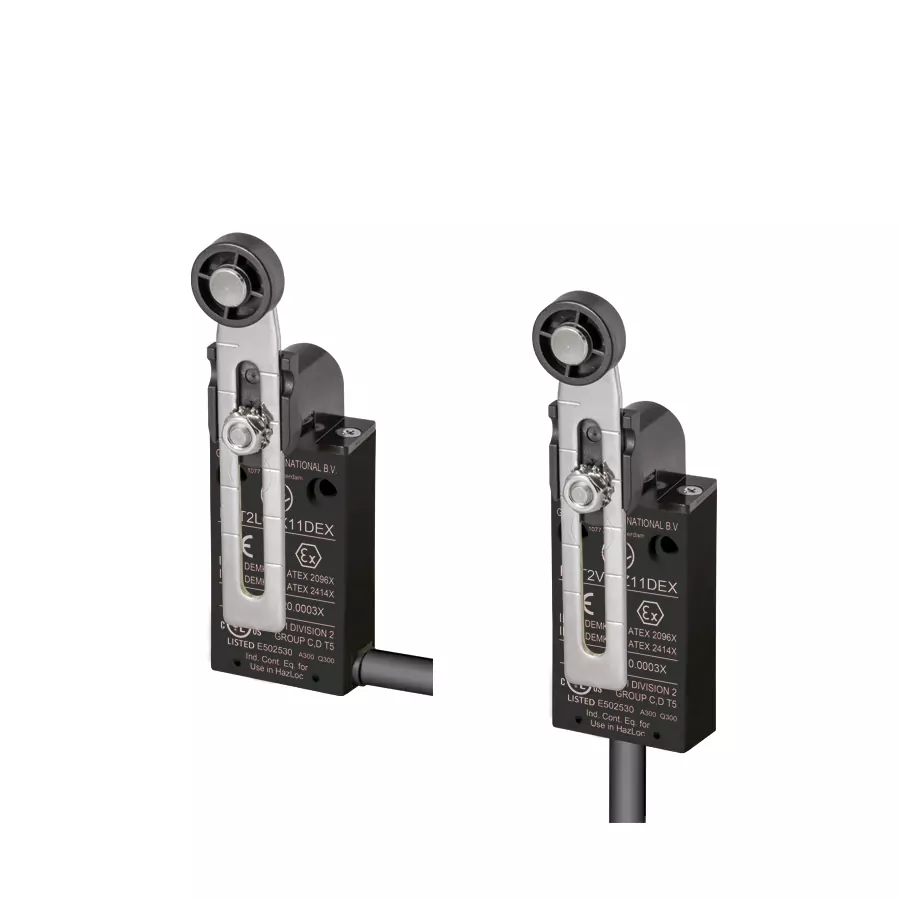

Pre-wired Thermoplastic Limit Switches – FCT Ex Series
II 3G Ex dc ec IIB T5 Gc – II 2D Ex tb IIIC T95°C Db / Class I Division 2 Groups C, D / Zone 2 (Gas) – Zone 21-22 (Dust) / Tamb = -25 .. +60°C / IP6X e IPX4 (Haz Loc) – IP67 (not classified areas)

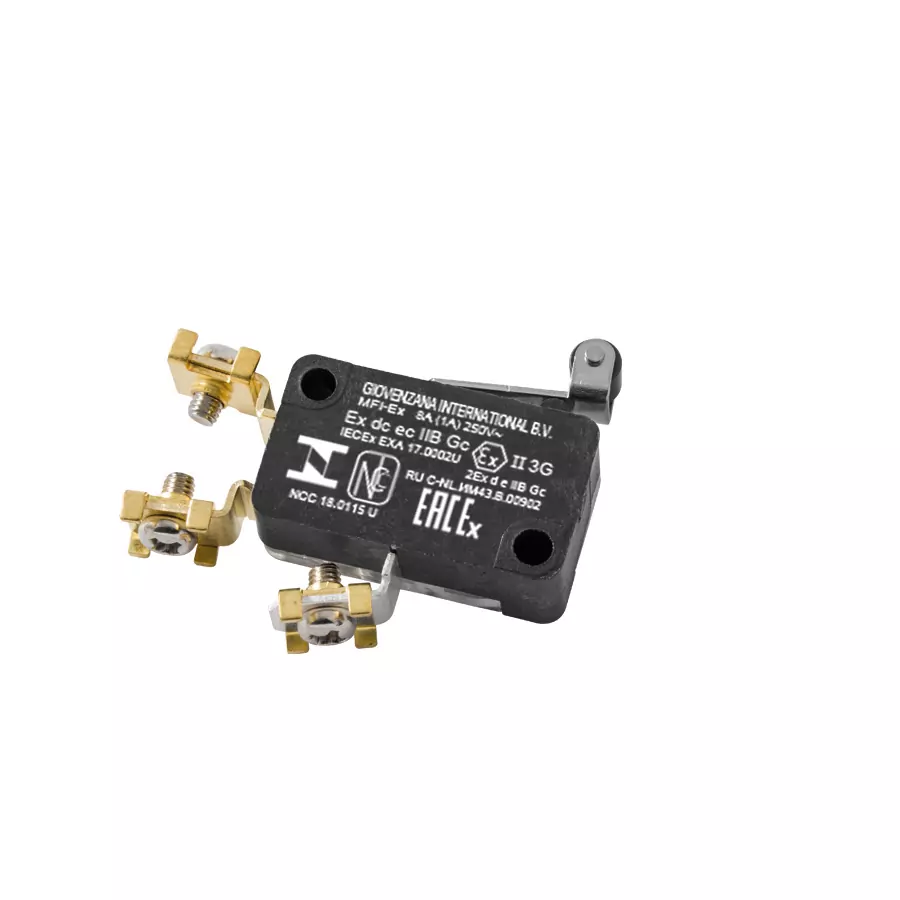

Micro Switches – MFI Ex Series
II 3G Ex dc ec IIB Gc / Zone 2 (Gas) / Class I Division 2 Groups C, D

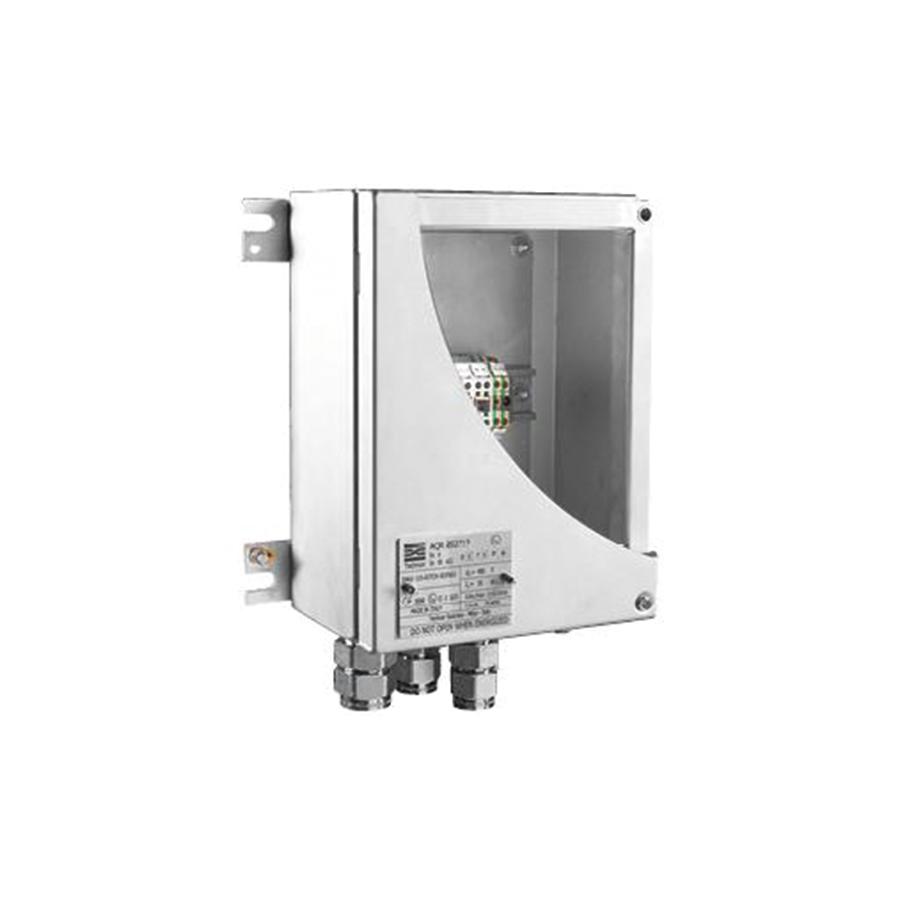

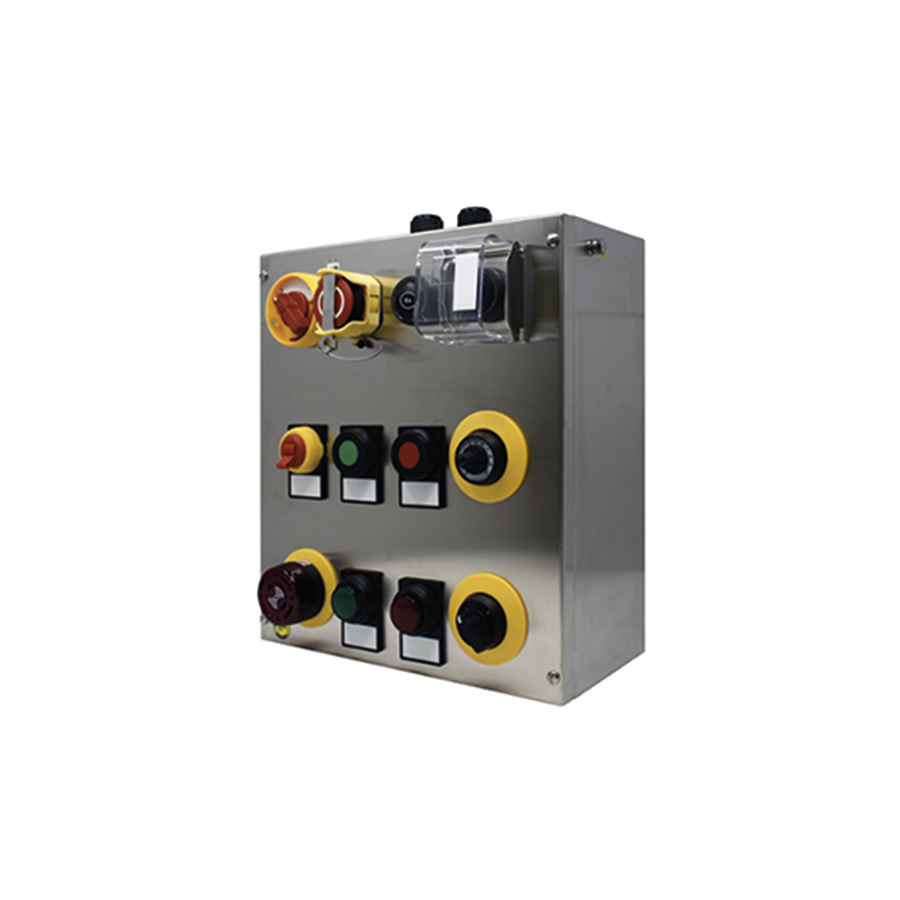

Local Control Stations – CS**S/A/G*****EX.. Series & Junction Boxes – CS**S/A/G*****EX.. Series
     Global (IECEx):
        Ex ia IIC/IIB T6/T5/T4 Ga2 or
        Ex eb IIC/IIB T6/T5/T4 Gb1 or
        Ex e IIC/IIB T6/T5/T4 Gb1 or
        Ex db eb ia/ib mb [3] IIC/IIB T6/T5/T4 Gb1 and/or
        Ex tb IIIC T85°C/T100°C/T135°C Db
     Europe (ATEX)
        II 1 G Ex ia IIC/IIB T6/T5/T4 Ga2 or
        II 2 G Ex eb IIC/IIB T6/T5/T4 Gb1 or
        II 2(1) G Ex db eb ia/ib mb [3] IIC/IIB T6/T5/T4 Gb1 or
        II 2G (1D) Ex db e ia/ib mb [Ex iaD] IIC/IIB T6/T5/T4 Gb1
        and/or II 2 D Ex tb IIIC T85°C/T100°C/T135°C Db

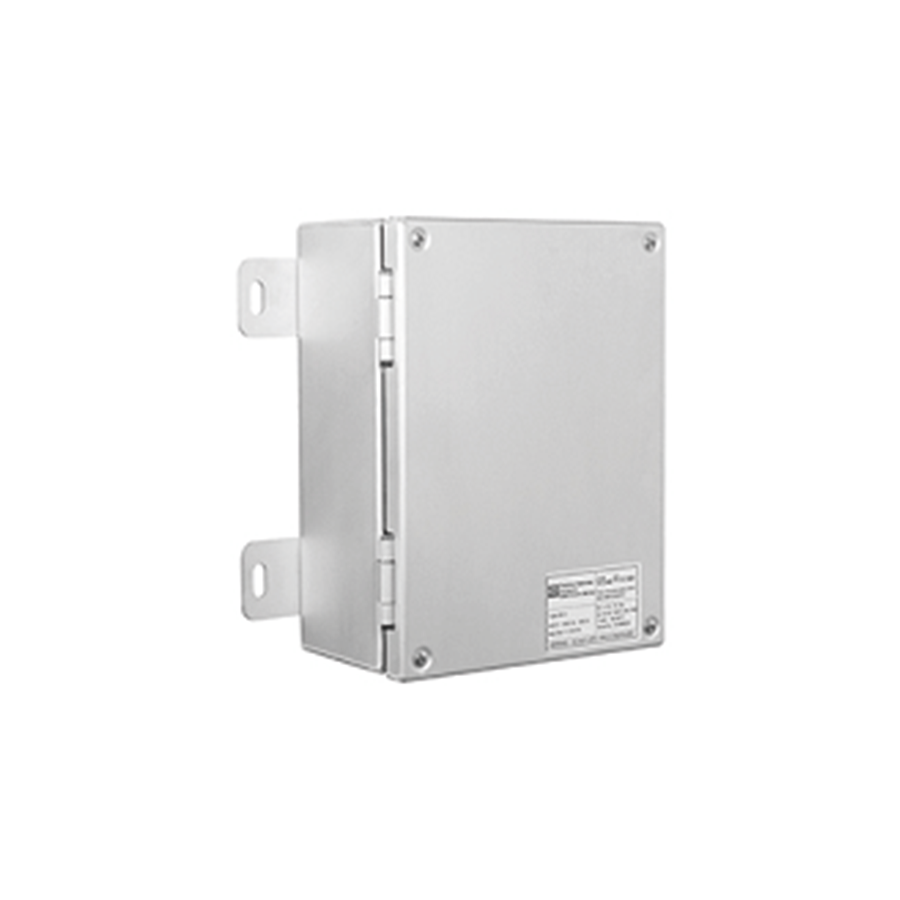

Increased Safety EnclosuresA/G/S*****EX.. Series
Global (IECEx):
Ex eb IIC Gb
Ex tb IIIC Db
Europe (ATEX)
II 2 G Ex eb IIC Gb
II 2 D Ex tb IIIC Db

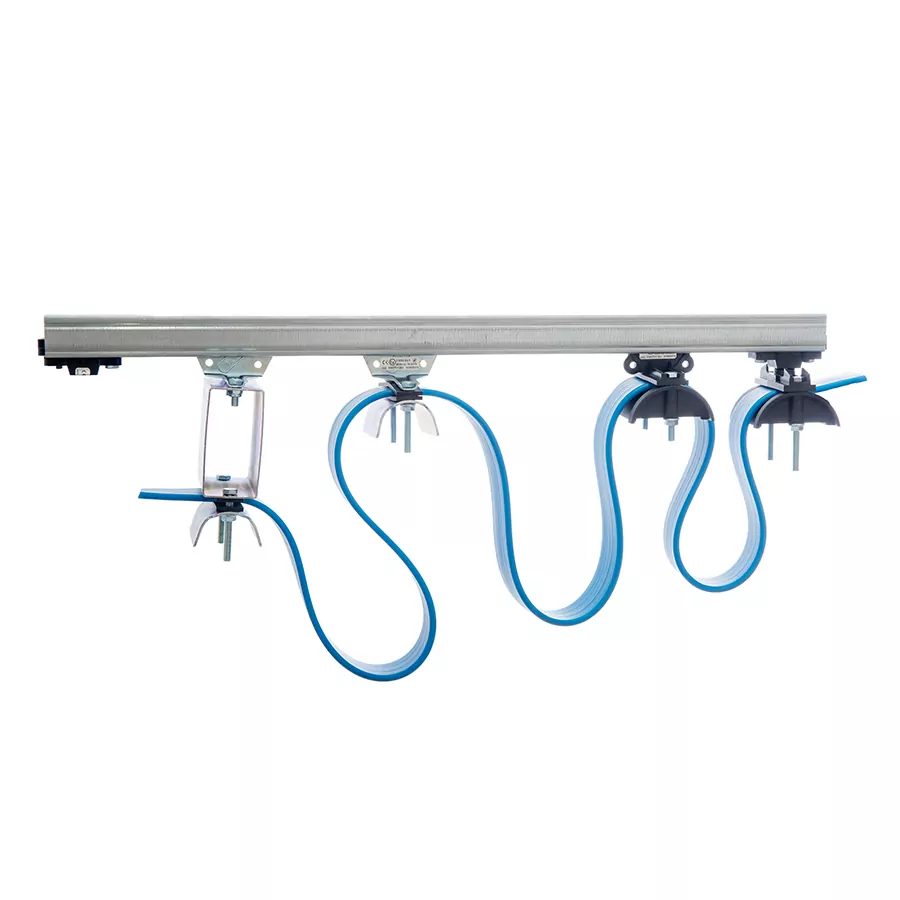

Festoon System – 30 Ex / 41 Ex Series
II 2G Ex h IIB T5 Gb – II 2D Ex h IIIC T85° Db / Zone 1-2 (Gas) – Zone 21-22 (Dust) / Tamb = -25°C .. +80°C / IP65
