Complementary products

The range of components for lifts and escalators is completed by a series of complementary products with the usual high-quality standards.
• Limit switches to signal the presence at the floor, wheeled doors with different diameters, adjustable in height and depth with CSA-UL certified contacts, positive opening and double interruption with DIN normalized fixing interaxle.
• SQ Series isolators with fixing and direct control inside the switchboard, with range from 25 A to 160 A in configuration from 3 to 8 poles, with auxiliary contacts for signal added – all certified CSA – UL – IMQ – CCC – EAC.
• Socket of different typologies, divided according to nations with panel fixing with protection grade IP54 or inside switchboard DIN bar.




Sockets IP54

European Socket – UE

French Socket – FR

British Socket – UK

Swiss Socket – SW

USA Socket – US

Australian/Chinese Socket – CH


Sockets IP54 with fixing on DIN-EN 50022-35

European DIN – UE

1412_FR

French DIN – FR

British DIN – UK


Contact Blocks

Welding Terminals

NC

Welding Terminals

NO

Spring Clamp Terminals

NC

Spring Clamp Terminals

NO

P

Lampholder BA9s

BA9s lamp socket / 250V – 2,4W max / Bulb not included

Lampholder with buil-in LED

PCW5L12 – AC/DC 12V
PCW5L24 – AC/DC 24V
PCW5L48 – AC/DC 48V
PCW5L110 – AC/DC 110V
PCW5L220 – AC 220V

Screw Terminals

NC

Screw Terminals

NO

Lampholder BA9s

BA9s lamp socket / 250V – 2,4W max / Bulb not included

Lampholder with buil-in LED

PL0045L12 – AC/DC 12V
PL0045L24 – AC/DC 24V
PL0045L48 – AC/DC 48V
PL0045L110 – AC/DC 110V
PL0045L220 – AC 220V


Switch Disconnectors

Switch Disconnector – Base Mounting with direct command TYPE D-L1N

AC-21A > 40A-690V

AC-23A > 32A-400V

Fixing box DIN RAIL DIN-EN 50022-35

Black knob locking in “ON-OFF” position

Switch Disconnector – Base Mounting with direct command TYPE D-L2N

AC-21A > 80A-690V

AC-23A > 75A-400V

Fixing box DIN RAIL DIN-EN 50022-35

Black knob locking in “ON-OFF” position

Switch Disconnector – Base Mounting with direct command TYPE B

AC-21A > 125A-690V

AC-23A > 125A-400V

Direct command and Door locking

Fixing box DIN RAIL DIN-EN 50022-35

Black knob locking in “ON-OFF” position


Limit Switches

Variable lenght roller lever ø18

Minimum tripping force 0,10N

IP65

Variable lenght roller lever ø45

Minimum tripping force 0,10N

IP65

Variable lenght roller lever ø45

Minimum tripping force 0,10N

IP65

Overlapping slow action contacts 1NO+1NC

Positive opening operation according to IEC 947-5-1

IP65

Non Overlapping slow action contacts 1NO+1NC

Positive opening operation according to IEC 947-5-1

IP65

Overlapping slow action contacts 1NO+1NC

Positive opening operation according to IEC 947-5-1

IP65

Non Overlapping slow action contacts 1NO+1NC

Positive opening operation according to IEC 947-5-1

IP65


Cam Switches P016 Series

Cam Switch

switching 1-2 (2NO+2NC)
IP20

Cam Switch

switching 1-2 (3NO+3NC)
IP20

Cam Switch

switching 1-0-2 (2NO+2NC)
IP20

Cam Switch

switching 1-0-2 (3NO+3NC)
IP20


Auxiliary Controls Orion Series – Black Line

Alarm push button

IP65

Black push button Light

IP65

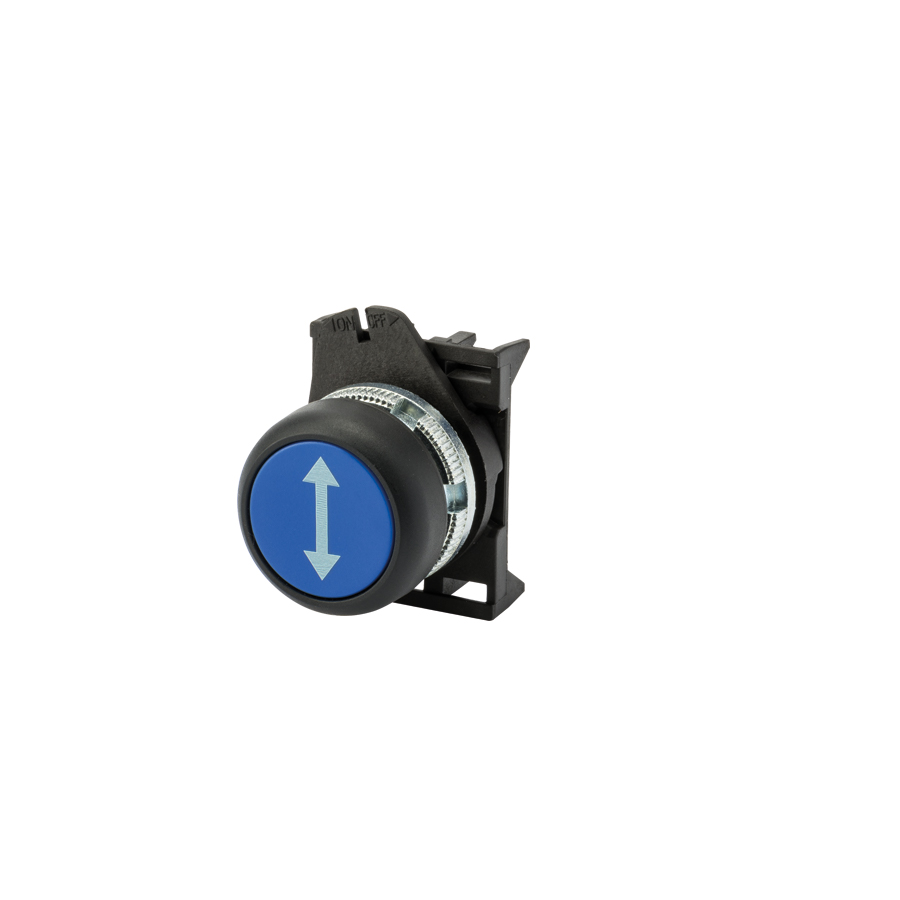

Blue common push button

IP65

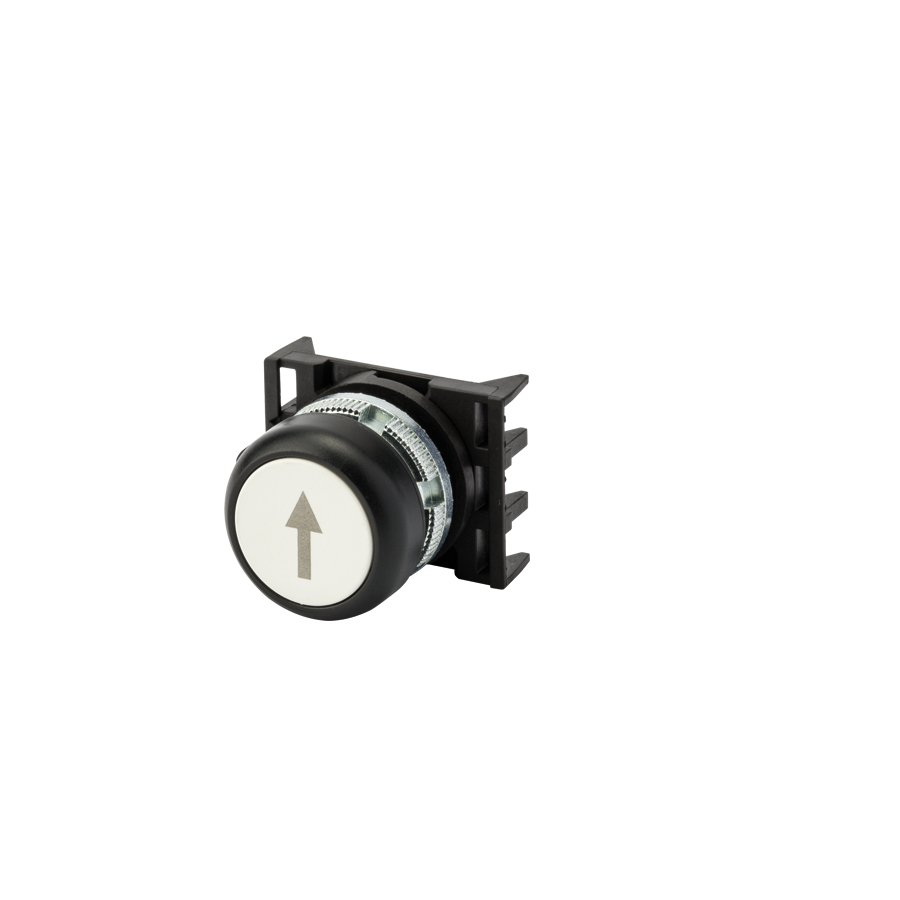

Up white push button

IP65

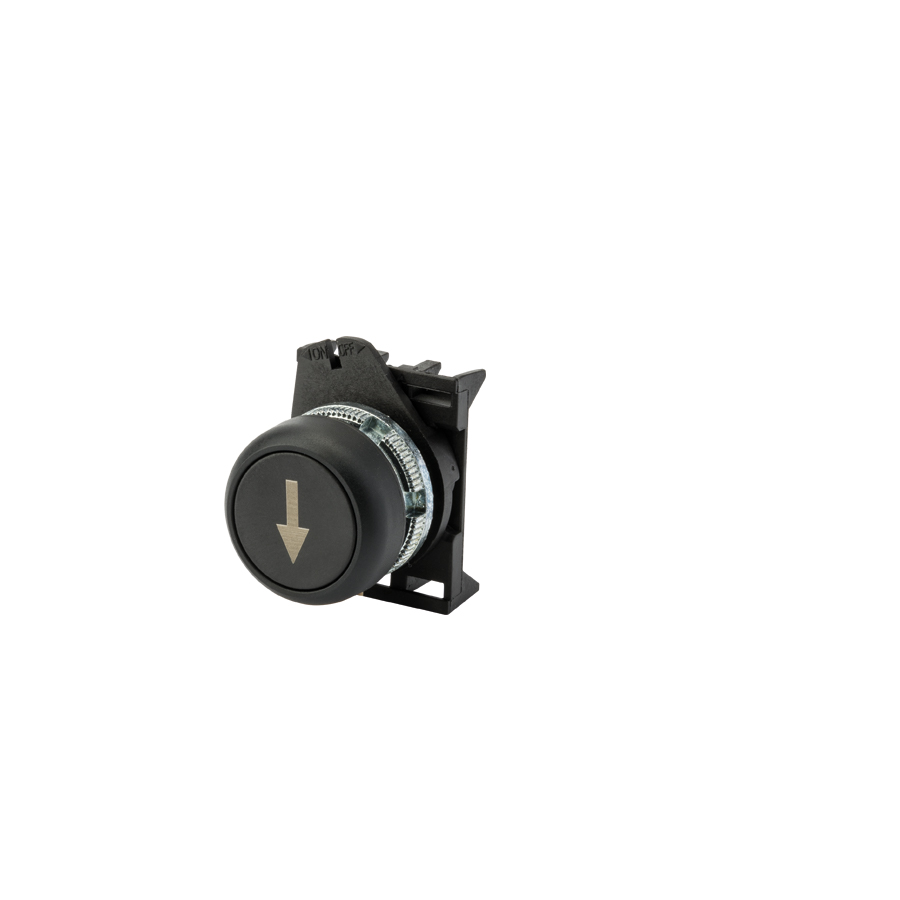

Down black push button

IP65

Multifunction push button UP-STOP-DOWN

IP65

Multifunction push button UP-DOWN

IP65

Multifunction push button LEFT-RIGHT

IP65


Complementary products

Breaking glass emergency panels IP55

Dimensions: 110x110x57
Colour: Red
Contact Blocks: 1NC + 1NO with screw terminals
Double option: automatic start upon breaking glass (one action); manual start after breaking glass (two actions)
Green pilot light for localizing (Led 230V AC on request)
Red light push button (BA9s lamp 230V AC on request)
Contacts in conformity to: IEC 947-5-1, EN 60947-5-1, uL 508
Vibration resistance: EN 60068-2-27 Shock resistance:: EN 60068-2-29
Certifications: cuL, IMQ, CCC, EAN, RINA
IP55

Push button for GME01

Push button for GME01

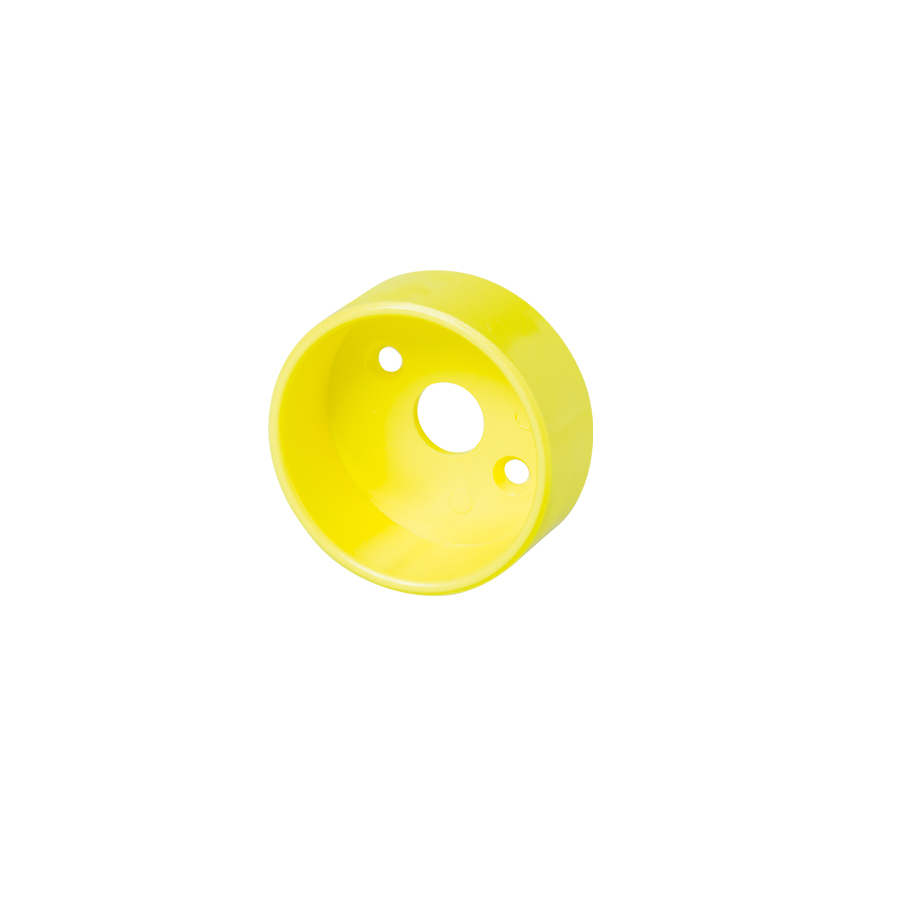

Protection ring Ø35 for logo

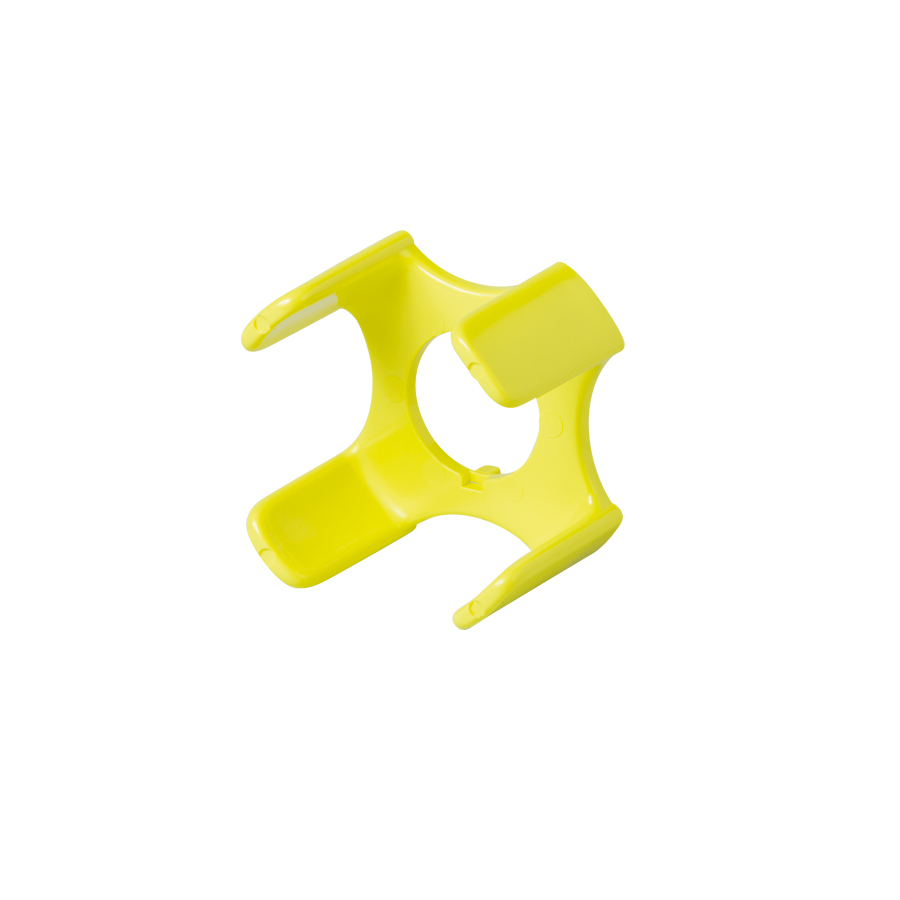

Mushroom guard

Knob guard Ø42 for cam switches

Knob guard Ø50 for cam switches

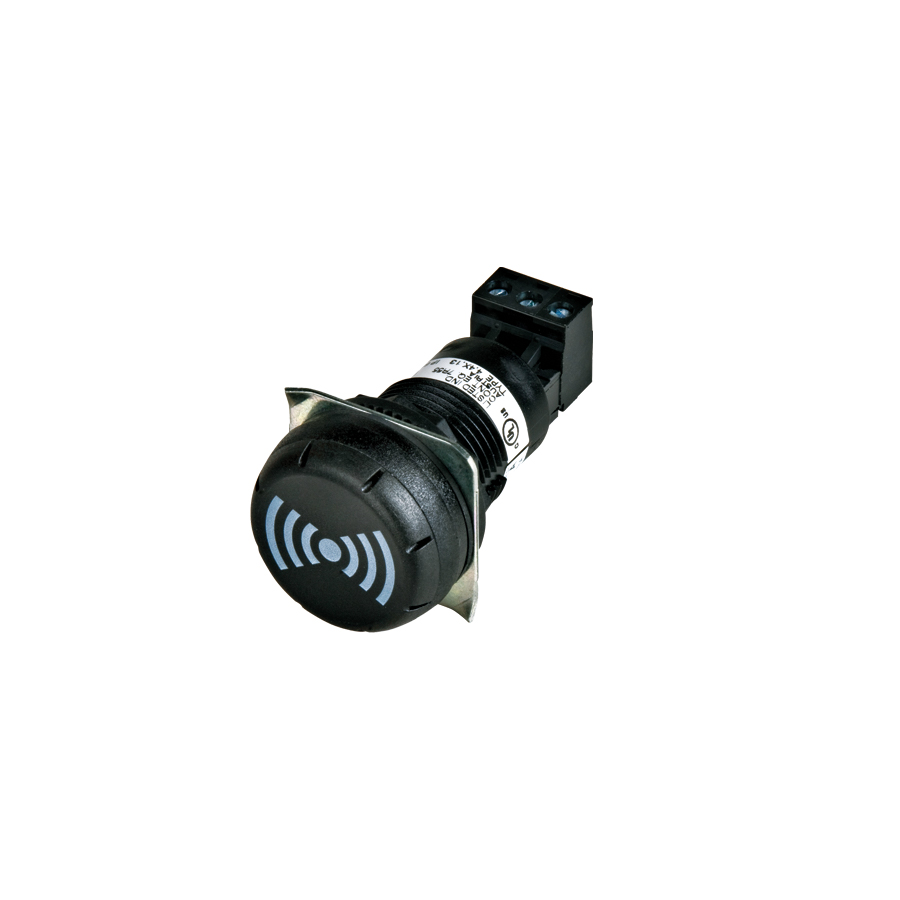

Buzzer AC/DC 12-24V 90dB/30cm continuous tone

IP65
