Push button stations

Push-button-station-enclosures-web pulsantiere
PUSH BUTTON STATIONS WITH SCREW CONTACT ELEMENTS

All the emergency operators are realized in compliance with European norms:

• EN ISO 13850 Machine safety. Emergency stopping devices, functional aspects – Project principles
• IEC/EN60947-5-1
• They comply to the requirements of the norm IEC/EN60204-1: Machine safety – Machine electric equipment – General rules
The operators are manufactured with a mechanical system of “charge stock” which guarantees activation and coupling certainty, or stopping, in “active” position.
The combination with NC contact with positive opening and the presence of visual systems on “state” of the actuator on some models guarantee the highest reliability of this kind of operators.

Protection IP65
Compliance to the norm EN ISO 13850
Complete keyboards from 1 to 3 positions, empty case from 1 to 6 positions.

ABS material, heat-resistant
Self-extinguishing class V0 uL94
Protection grade EN60529 IP65
Double isolation
Black case RAL 9005, yellow cover GGT and grey cover RAL 7035




PUSH BUTTON STATIONS WITH SCREW CONTACT ELEMENTS – IP65 EN ISO 13850

PQ01RN2

Momentary smooth key with NC contact

PQ01RN1

Momentary smooth key with NO contact

PQ01M4N

Mushroom-shaped key ø40 momentary NC

PQ01M6N-PQ01P6N

Mushroom-shaped key ø60 momentary NC

PQ02B

With 2 keys

PQ02A

1 key with emergency EN ISO 13850 (NO)

PQ03B

2 keys with emergency EN ISO 13850 (NO)

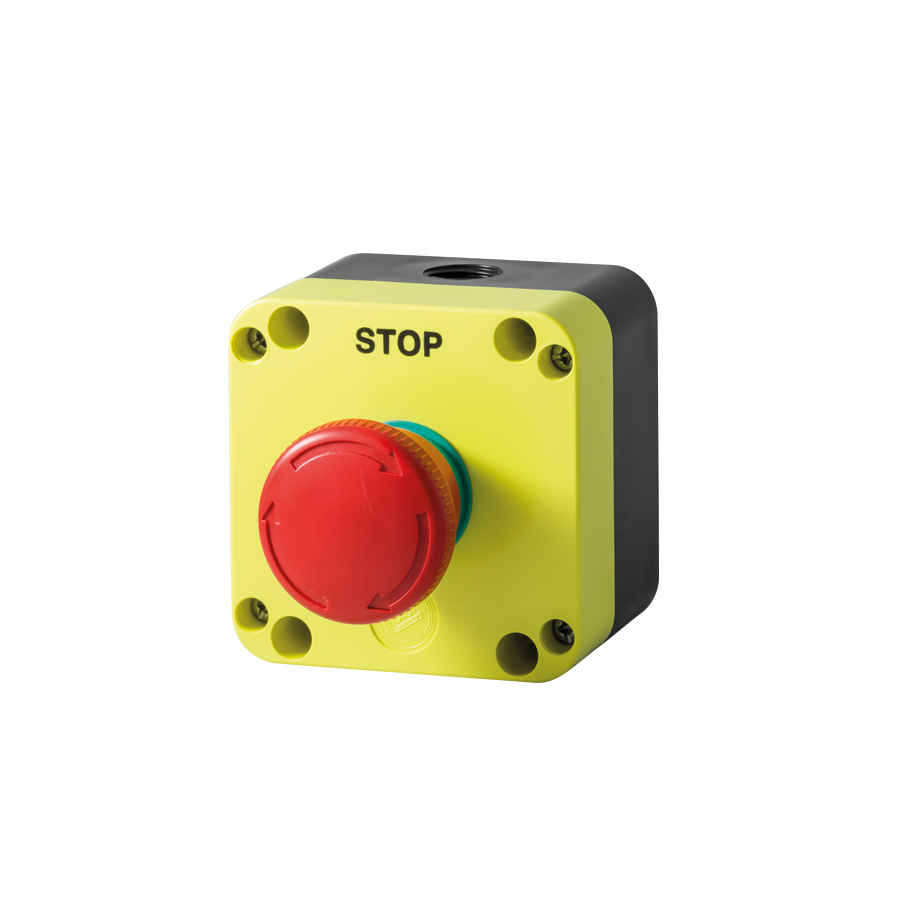

PQ01R4N

Mushroom-shaped key ø40 rotation release (NO)

PQ01P4N

Mushroom-shaped key ø40 push-pull (NO)

PQ01L4N

Mushroom-shaped key ø40 push-pull, luminous, with led (NO)

PQ01M6N-PQ01P6N

Mushroom-shaped key ø60 push-pull (NO)


PUSH BUTTON STATION ENCLOUSURES – IP65 EN ISO 13850

PQ01K

1 hole keyboard

PQ01KGN

1 hole keyboard

PQ02K

2 holes keyboard

PQ03K

3 holes keyboard

PQ04K

4 holes keyboard

PQ05K

5 holes keyboard

PQ06K

6 holes keyboard
