limit-switches-FTN146

FTN146

Thermoplastic body Protection degree IP67 Safety-door hinge switch Contact types – slow action and snap action type “Zb”: X11 (1NC/1NO Slow Action) – WO2 (2NC Slow Action) Conduit entry: Standard M20 – On request 1/2 NPT

limit-switches-FTN148

FTN148

Thermoplastic body Protection degree IP67 ø8 short metal end plunger Contact types – slow action and snap action type “Zb”: X11 (1NC/1NO Slow Action) – WO2 (2NC Slow Action) – W20 (2NO Slow Action) –  Z11 (1NC/1NO Snap Action) – Z02 (2NC Snap Action) Conduit entry: Standard M20 – On request 1/2 NPT

limit-switches-FTN145

FTN145

Thermoplastic body Protection degree IP67 ø12 metal roller plunger Contact types – slow action and snap action type “Zb”: X11 (1NC/1NO Slow Action) – WO2 (2NC Slow Action) – W20 (2NO Slow Action) –  Z11 (1NC/1NO Snap Action) – Z02 (2NC Snap Action) Conduit entry: Standard M20 – On request 1/2 NPT

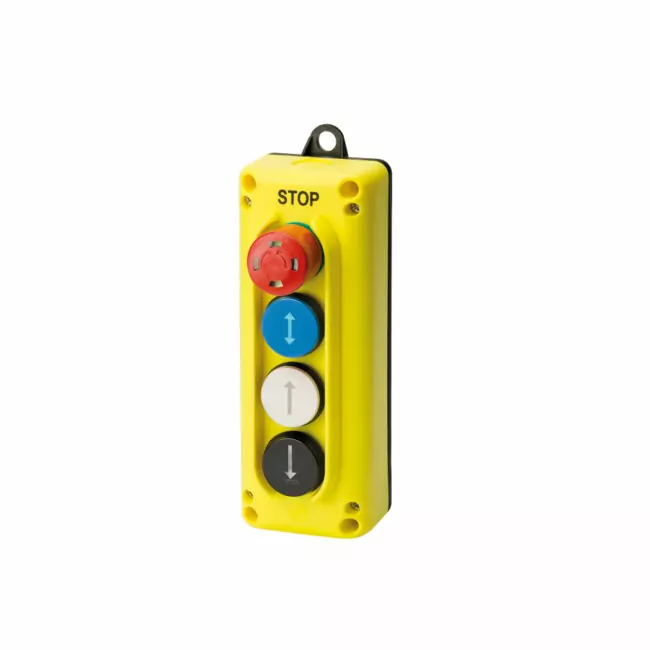

slim-maintenance-stations-TLP4S016

TLP4S016

IP65 Slim Maintenance station 1 Emergency stop EN ISO 13850 ø30 twist to release with vision – 1NC 1 Common push button – 1NO 1 Up push button – 1NO 1 Down push button – 1NO

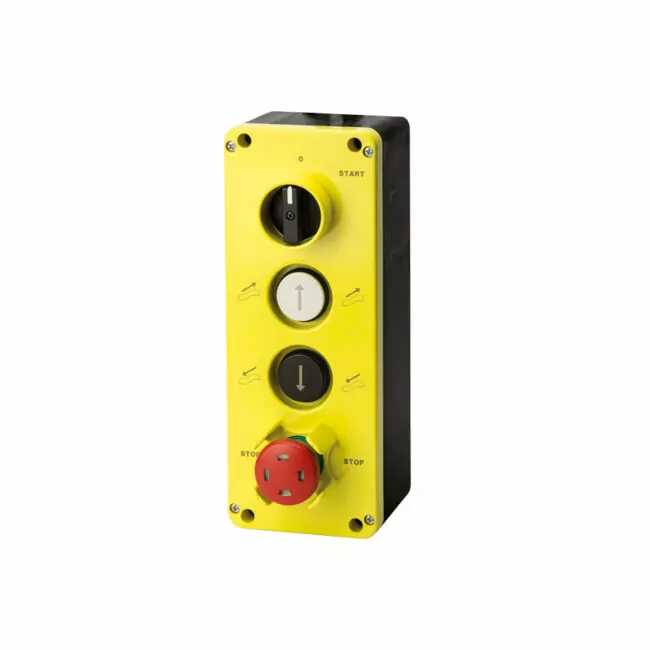

slim-maintenance-stations-GM245

GM245

IP65 Maintenance station 1 Cam switch 0-1 45° switching – 2NC 1 Up push button – 1NO+1NC 1 Down push button – 1NO+1NC 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC

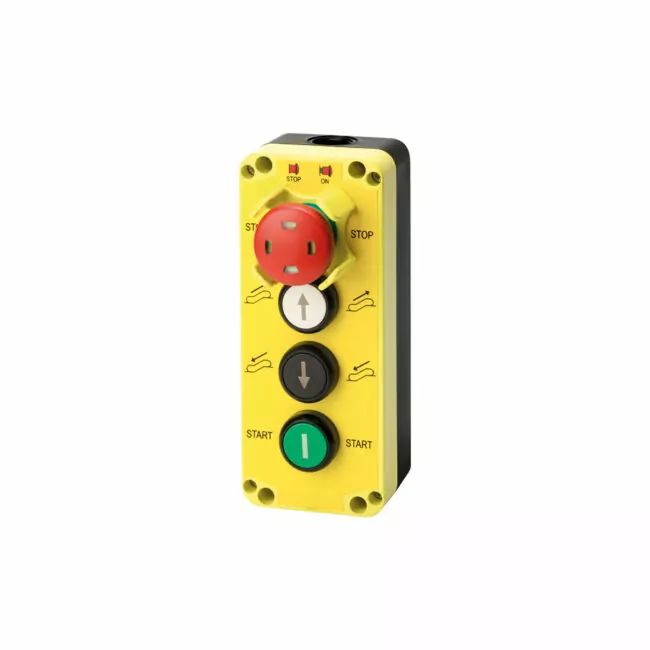

slim-maintenance-stations-GM482

GM482

IP65 Maintenance station 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC 1 Up push button – 1NO+1NC 1 Down push button – 1NO+1NC 1 Start push button – 1NO

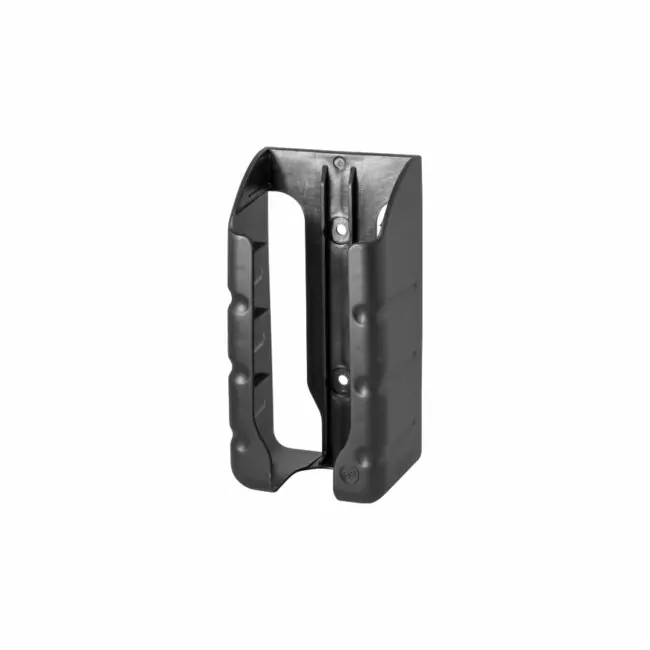

handlingsystem-lifttechnology-16000061

16000061/2

Wall bracket case – Polypropylene material, logo mold-printed 16000061 > from 1 to 3 buttons maintenance station 16000062 > from 4 to 5 buttons maintenance station

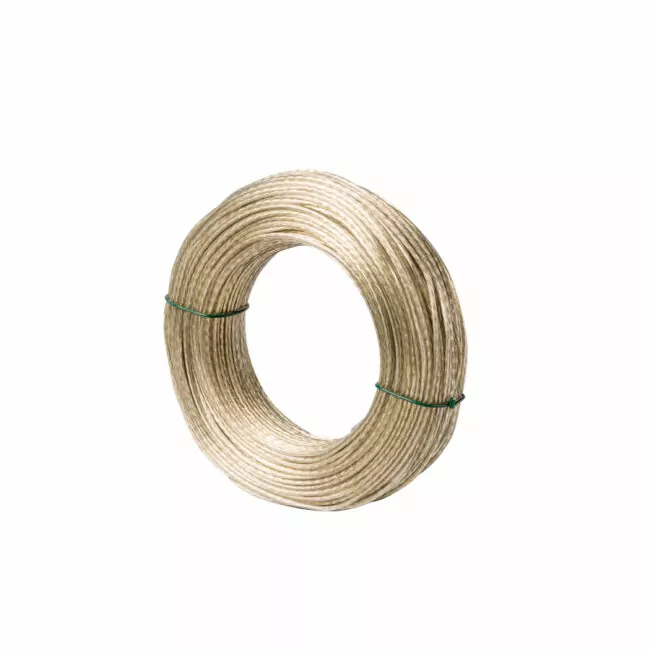

handlingsystem-lifttechnology-FTN198ROPE

FTN198-ROPE..

Rope roll ø3mm galvanized steel rope in transparent PVC sheath FTN198-ROPE-050 > Galvanized steel rope in transparent PVC sheath ø3mm – L=50mt FTN198-ROPE-100 > Galvanized steel rope in transparent PVC sheath ø3mm – L=100mt

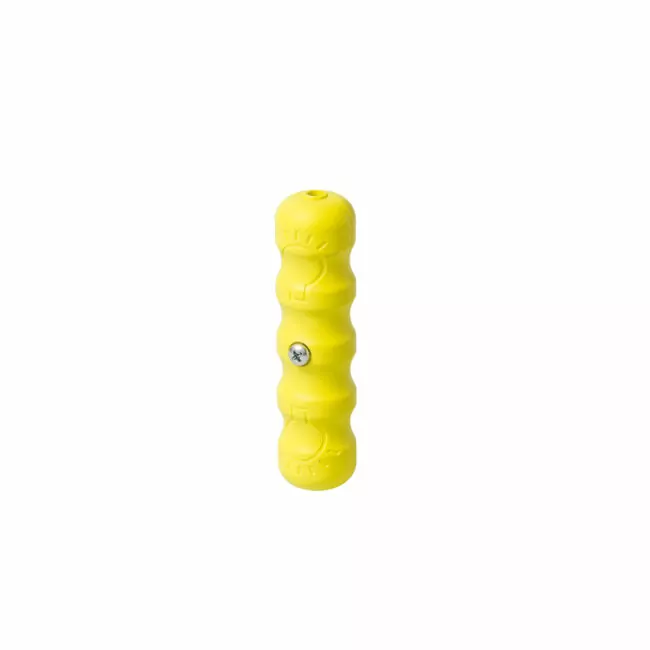

handlingsystem-lifttechnology-FTN198KNOB

FTN198-KNOB..

Rope function indicators Screw tightening torque closure > 0.8 … 1.0 Nm FTN198-KNOB > Knob to switch on elevator shaft light (cable operated system with limit switch FTN198) FTN198-KNOBT > Terminal knob to switch on elevator shaft light (cable operated system with limit switch FTN198)

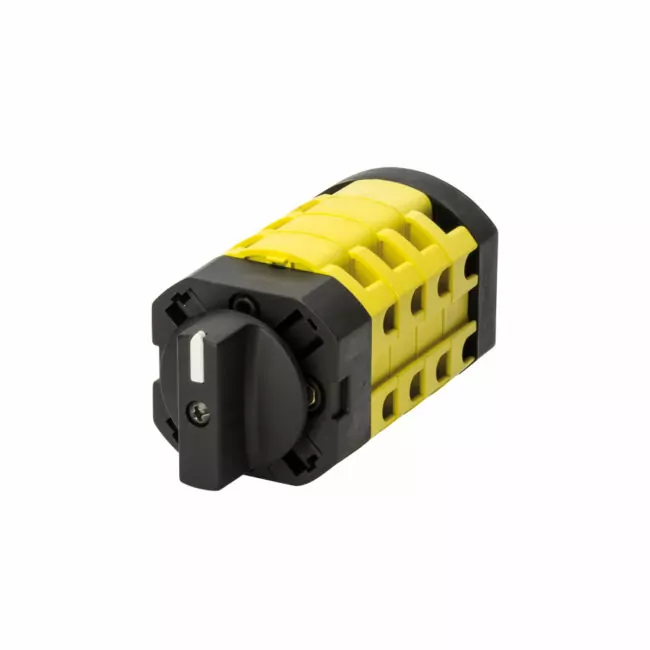

handlingsystem-lifttechnology-P016_LIFT

P016…

P0160100S > 1 Cam switch 1-2 90° switching – 2NO+2NC P0160101S > 1 Cam switch 1-2 90° switching – 3NO+3NC P0160112S > 1 Cam switch 1-0-2 90° switching – 2NO+2NC P0160138S > 1 Cam switch 1-0-2 90° switching – 3NO+3NC
