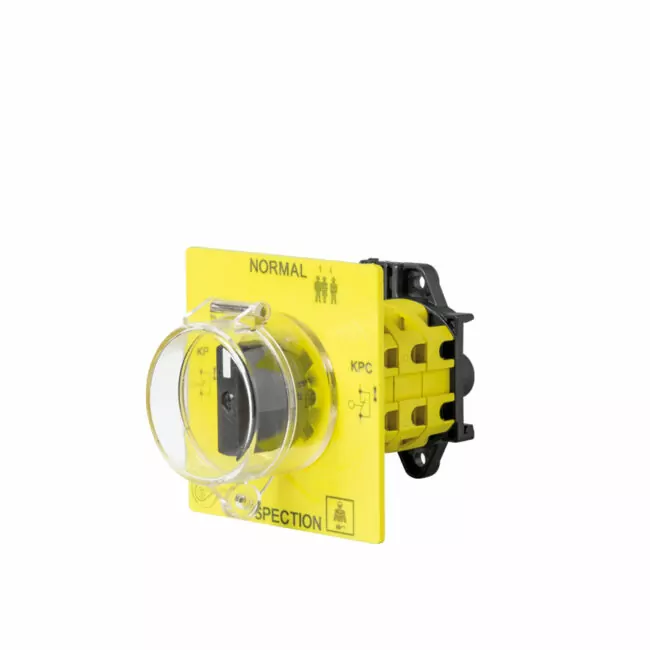

Rear fixing bypass devices P0122869S > 1 Cam switch 1-0-2 45° switching + KIT-018P-BYP-B06 > Kit protection plate A-OFF-B P0162718S > 1 Cam switch 90° switching + KIT-018P-BYP-B03 > Kit protection plate NORMAL-KPC-INSP-KP P0122671S > 1 Cam switch 1-0-2 90° switching + KIT-018P-BYP-B01 > Kit protection plate 1-0-2 P0162807S > 1 Cam switch 90° switching…

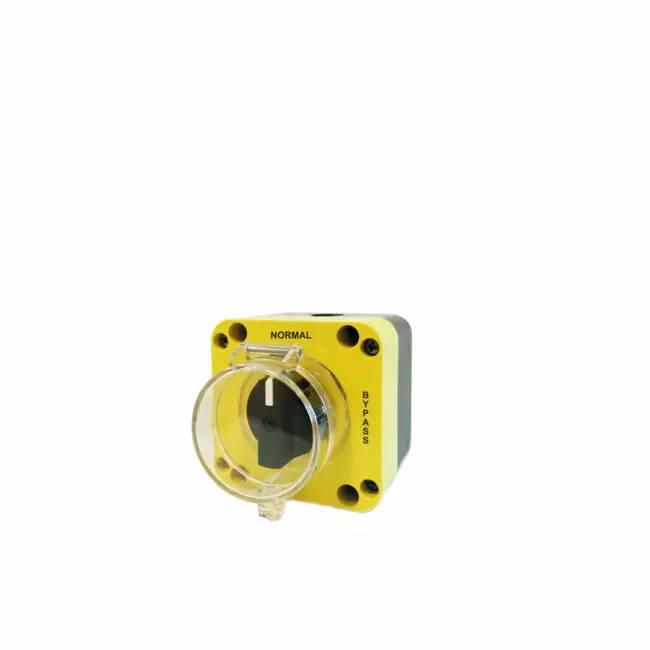

Enclosure bypass devices GM092BYPASS > 1 Cam switch 0-1 90° switching (P0162622S) GM092BYPASS-01 > 1 Cam switch 0-1 90° switching (P0162626S) GM092BYPASS-02 > 1 Cam switch 1-0-2 90° switching (P0162625S) GM092BYPASS-03 > 1 Cam switch 0-1 90° switching (P0162713) GM092BYPASS-04 > 1 Cam switch 1-0-2 90° switching (P0162751S) GM092BYPASS-05 > 1 Cam switch 0-1 90°…

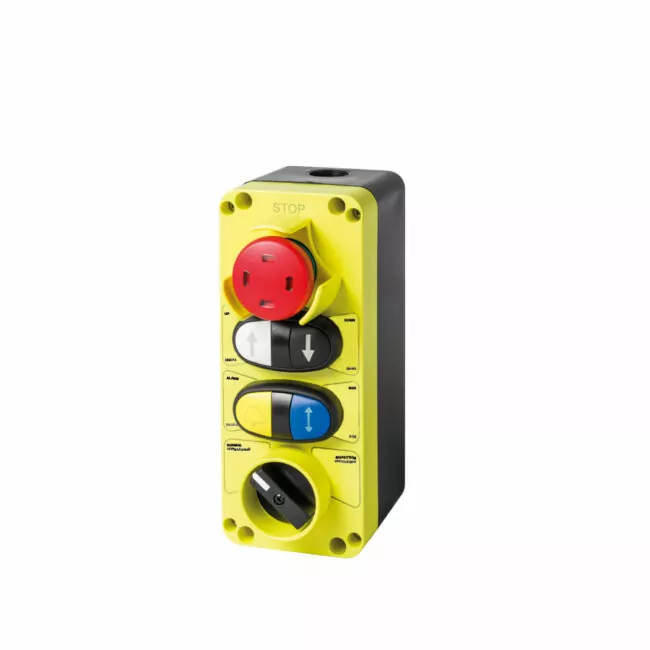

IP65 Maintenance station 1 Emergency stop EN ISO 13850 mushroom ø40 push-pull with vision – 1NC 1 Up/Down Dual push button – 2NO + 2NO 1 Alarm/Common Dual push button – 1NO + 1NO 1 Cam switch 1-2 90° switching – 2NO + 2NC …

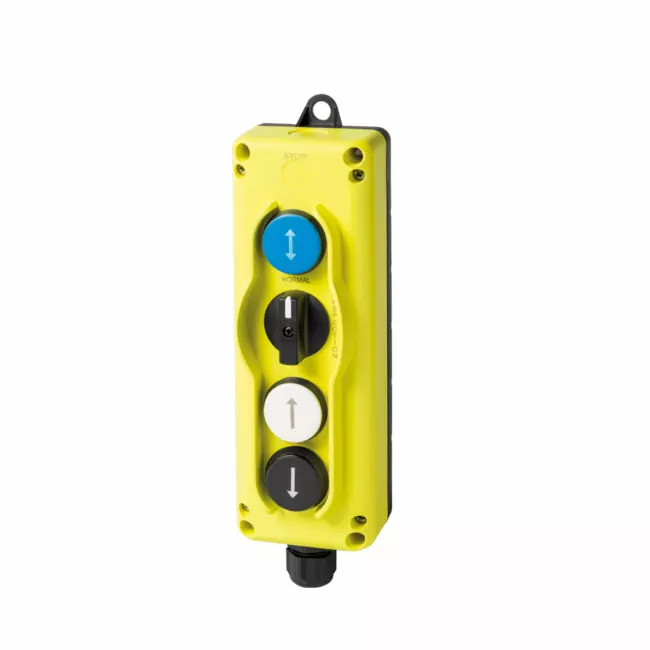

IP65 Maintenance station 1 Common push button 1 Cam Switch 0-1 90° switching – 2NO + 2NC 1 Up push button – 1NO 1 Down push button – 1NO

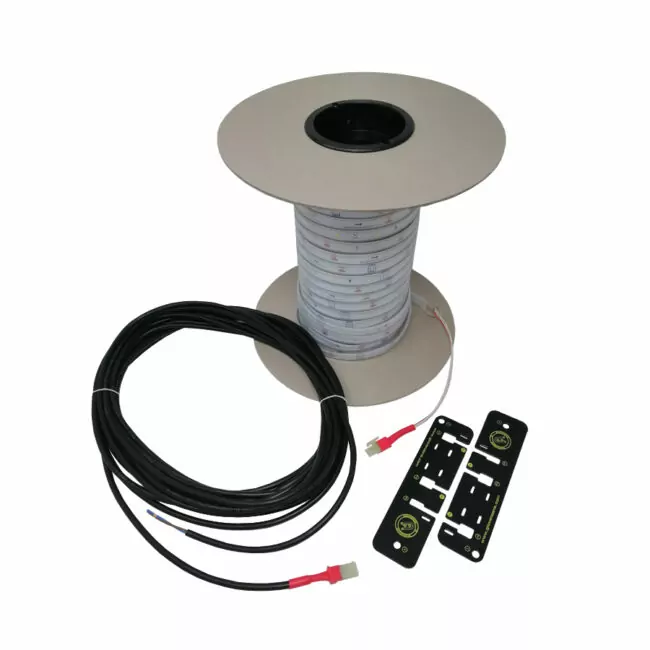

FLEXIBLE STRIPS – COMPLETE PRODUCT From 12 to 60 metres (according to the last two numbers of the product code) Including: GSL60 flexible strips of chosen lenght, cable profiled, LED strip tensioners (2 pieces)

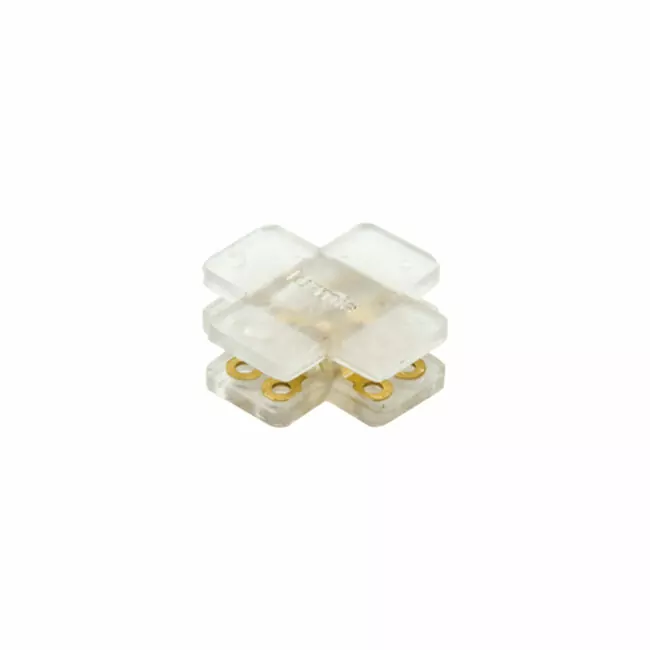

PROFILED CROSS CONNECTOR Connects four LED strips. Maximum current 6A. Profiled connection. Voltage 240VAC. Operating temperature -40° ~ +70°. IP65 protection (with GSLC002 and GSLC004).

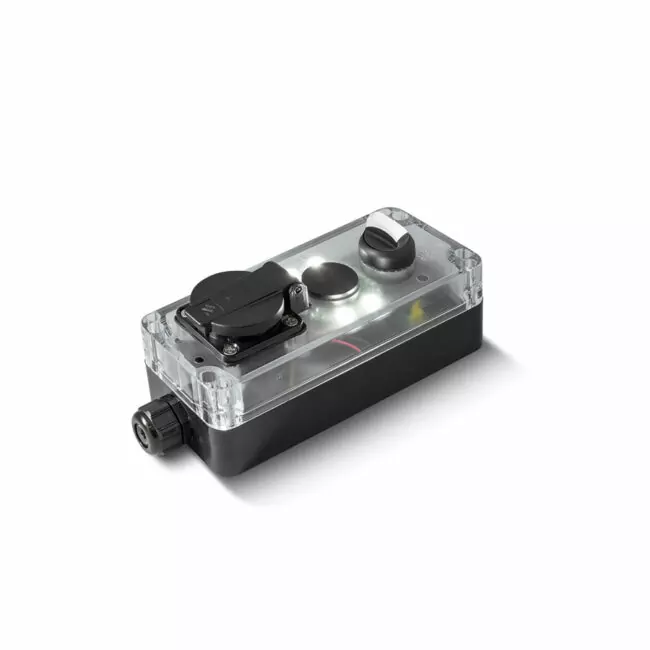

Maintenance station with 50/5 LUX white light, knob selector and socket 1 Knob selector 0-1 – 1NO 1 Stopping closing hole 1 WHITE LED PCB – 50LUX@230 VAC – 5LUX@24 VDC GM359/EU > 1 Schuko Socket Outlet 16A GM359/FR > 1 Cenelec Socket Outlet GM359/US > 1 USA Socket Outlet GM359/SW > 1 Swiss Socket…

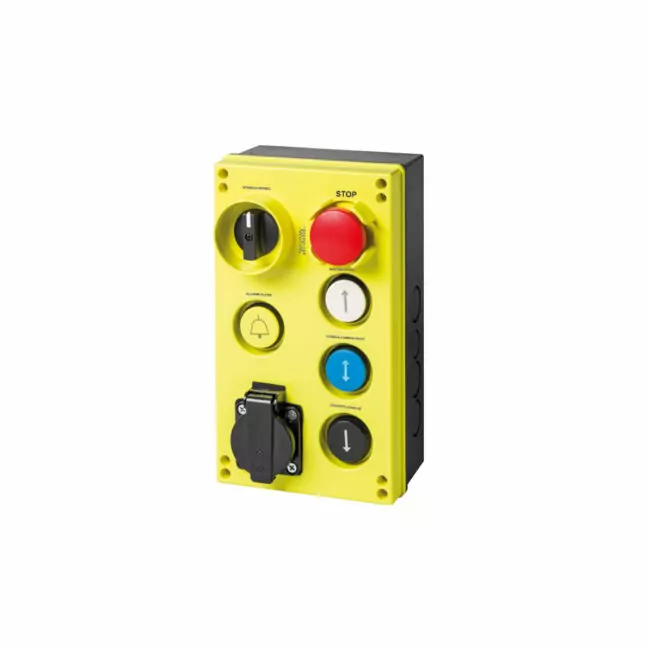

IP54 Inspection box 1 Cam Switch 1-2 90° switching – 3NO + 3NC 1 Emergency stop EN ISO 13850 ø40 push-pull – 1NC 1 Alarm push button – 1NO 1 Up push button – 1NO 1 Common push button – 1NO 1 Down push button – 2NO GM455/EU > 1 Schuko Socket Outlet 16A GM455/FR…

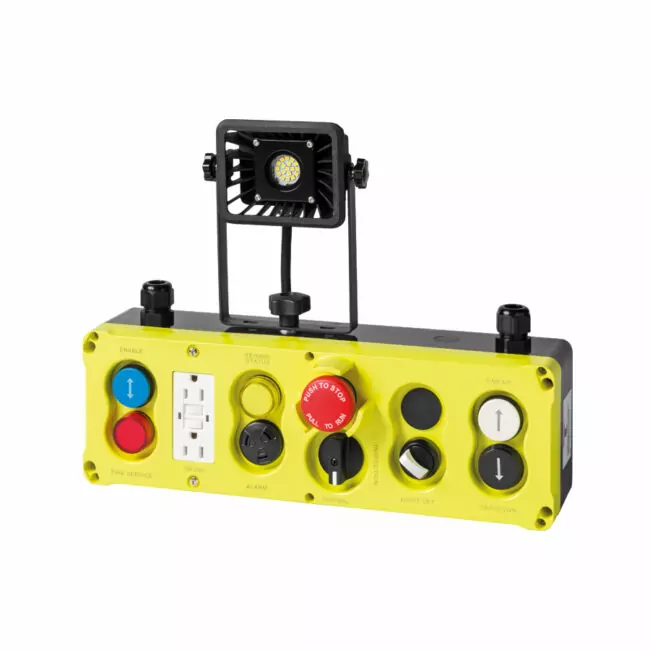

IP54 Maintenance station 1 LED lamp – 12W 1000 LUMEN 120V 1 Common push button – 1NO 1 Red LED Pilot Light – AC/DC 24V 1 GFCI socket 15A – 125V 1 Yellow LED Pilot Light – AC/DC 24V GMS312 > 1 BUZZER 30-120 VAC GMS355 > 1 BUZZER 6-28 VAC 1 Emergency stop EN…

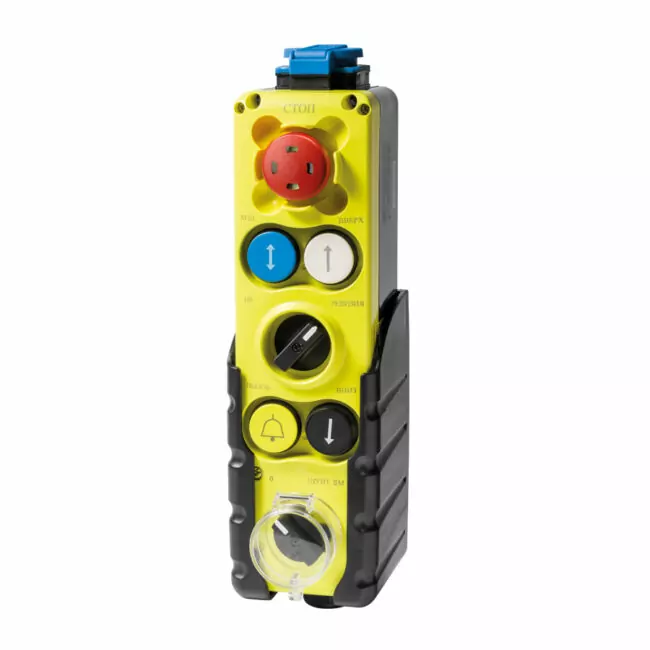

IP54 Maintenance station GMS309/EU > 1 Schuko Socket Outlet 16A GMS309/FR > 1 Cenelec Socket Outlet GMS309/US > 1 USA Socket Outlet GMS309/SW > 1 Swiss Socket Outlet GMS309/UK > 1 UK Standard Socket Outlet GMS309/CH > 1 Australia and China Standard Socket Outlet 1 Emergency stop EN ISO 13850 ø40 push-pull with vision –…
IP65 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 2NC 1 Alarm push button – 1NO 1 Common push button – 2NO 1 Cam Switch 1-2 90° switching – 2NO + 2NC 1 Up push button – 2NO + 1NC 1 Down push button – 2NO…

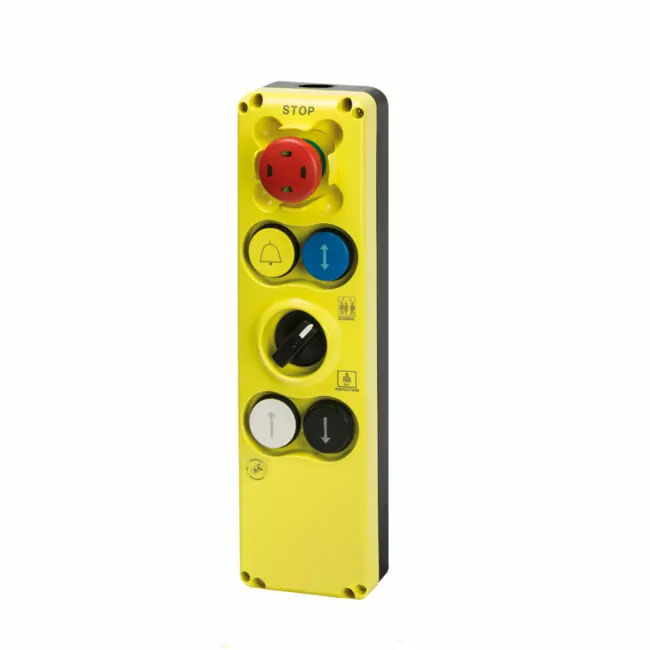

IP65 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC 1 Alarm push button – 1NO 1 Common push button – 1NO 1 Cam Switch 1-2 90° switching – 2NO + 2NC 1 Up push button – 2NO 1 Down push button – 2NO …
IP54 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 2NC 1 LED Light indicator ø40 1 Common push button – 2NO 1 Cam Switch 1-2 switching 90° – 2NO + 2NC 1 Up push button – 2NO + 1NC 1 Down push button – 2NO +…
IP54 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 2NC 1 Up push button – 2NO + 1NC 1 Down push button – 2NO + 1NC 1 Cam Switch 1-2 switching 90° – 2NO + 2NC 1 Knob Selector 1-0-2 – 2NO 1 Common push button…

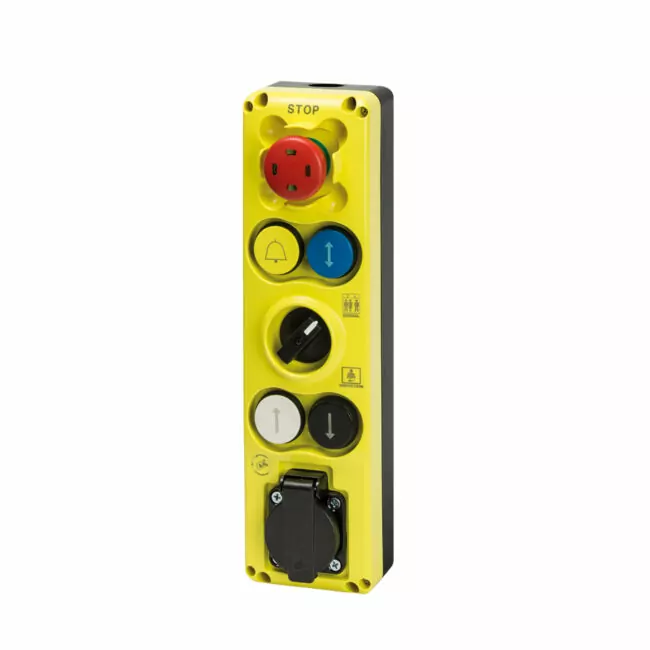

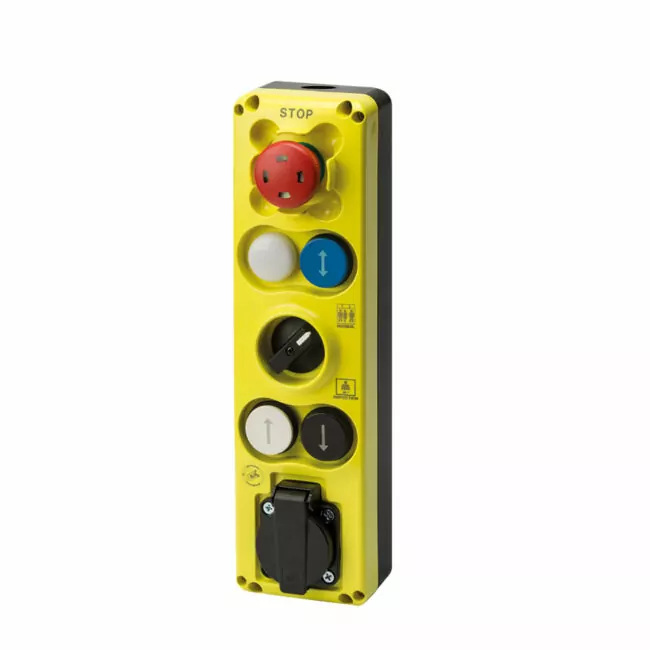

IP54 Maintenance station – SLIM VERSION (low-bottomed) 1 Emergency stop EN ISO 13850 ø40 push-pull with vision – 1NC 1 Alarm push button – 1NO 1 Common push button – 1NO 1 Cam Switch 1-2 switching 90° – 2NO + 2NC 1 Up push button – 2NO 1 Down push button – 2NO GM730/EU >…

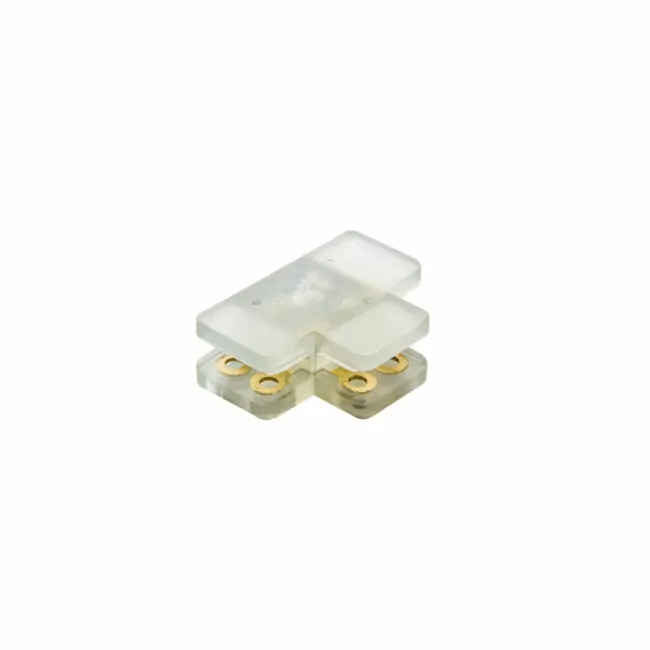

PROFILED T CONNECTOR Connects three LED strips. Maximum current 6A. Profiled connection. Voltage 240VAC. Operating temperature -40° ~ +70°. IP65 protection.
PROFILED BRIDGE CONNECTOR Connects two LED strips in a straight line. Maximum current 6A. Profiled connection. Voltage 240VAC. Operating temperature -40° ~ +70°. IP65 protection.

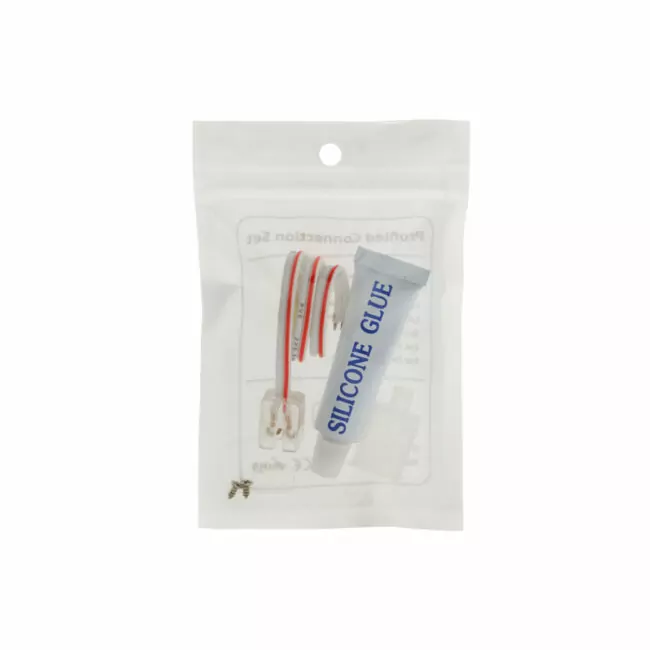

PROFILED CONNECTION SET KIT including different components to easily order the necessary for the installation of the LED strip line: GSLC001 – Cable profiled GSLC002 – Profiled silicone end cap for power GSLC003 – Profiled silicone end terminations GSLC004 – Profiled screw set GSLC007 – LED sealant

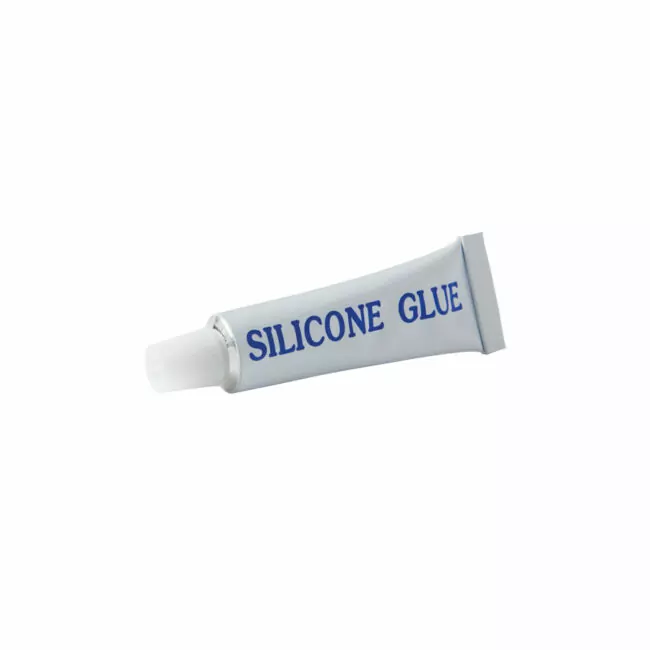

LED SEALANT Silicone glue to connect the flexible strip led with components.

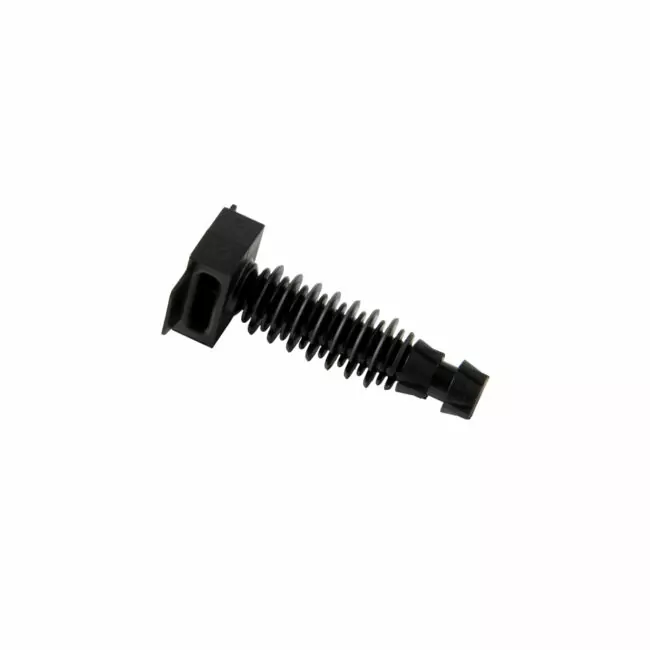

WALL PLUGS • Press-in dowel for internal shaft installation. • To mount LED strip on the wall. • Distance between plugs: 1.5 m for vertical installation, 0.5 m for horizontal installation. • 100-piece packs on request.
